4 ports Ethernet Switches

model： WT-DS105-1GT4T

1 ×10/100/1000M Ethernet port + 4×10/100M Ethernet port

Description Technical parameters Applications Download Related Products

Features

n1GigabitEthernetports,4 FastEthernetports

nFanless design，IP30 protection grade, Impact resistant metal shell

nApplicable voltage range 100~240V AC

nMeet the requirements of electromagnetic compatibility EMC industrial grade 4（anti-lighting, static electricity, surge, group pulse）

nAll port anti-lighting 6KV

nWorking temperature: -20℃～60℃

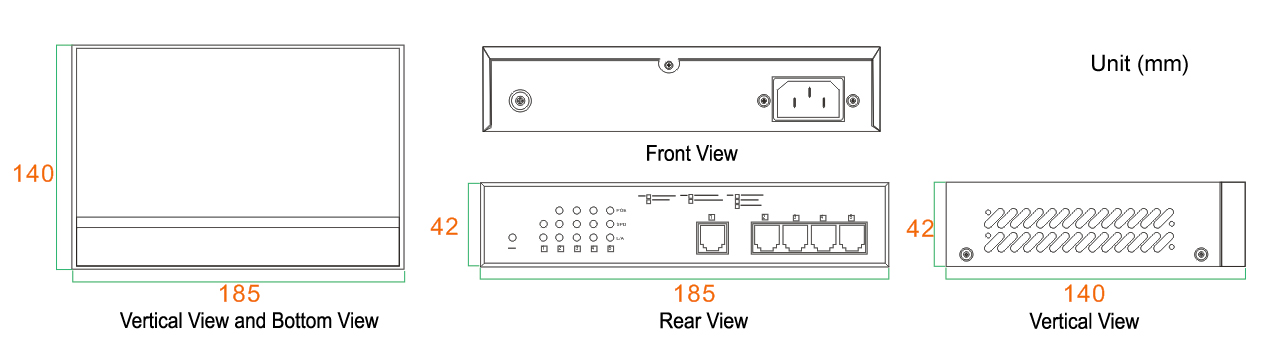

Dimension

Unit (mm)

Order information

Packaging List

• Ethernet Switch

• AC Power Cable

• Installation Accessories

• User’s Manual

• Warranty Card

• Qualification Certificate

Label： Surveillance Switches

Products Properties

Interface	Ethernetinterface:10/100/1000Mbps, Full/Halfduplex mode,support MDI/MDI-X. transmission distance common mode 0-100m; LEDindicator:PWR,Link/ACT, SPD
Switch Properties	Backboard bandwidth: 10Gbps MAC address table:8K Message cache size:1Mbits Oversized frame rate:10 KB Packet forwarding rat:7.5Mpps
Power Supply	Input voltage:100~240V AC Input current: Max50mA
Physical Properties	Housing: metal，IP30protection Dimension :185mm140mm42mm Weight :700g Installation mode: desktop installation, wall-mounted installation
Environmental Constraint	Working temperature:-20 ~ 60°C (-4 ~ 140°F) Storage temperature: -40 ~ 85°C (-40 ~ 185°F) Environment relative humidity: 5 ~ 95% (non-condensing)
Standards and certification	Electromagnetic interference（EMI）:FCC Part 15/CISPR22（EN55022）：Class A Electromagnetic sensibility（EMS）: IEC61000-4-2 (ESD) 4class， IEC 61000-4-3 (RS) 3class， IEC 61000-4-4 (EFT) 4class， IEC 61000-4-5 (Surge) 4class， IEC 61000-4-6 (CS) 3class Vibration resistance : IEC 60068-2-6 Impact resistance : IEC 60068-2-27 Free falling : IEC 60068-2-32 Note: Please visit the Wintop official website to check the latest certification state. MTBF(mean time between failures) Time :500000h
Quality Warranty	3 years
